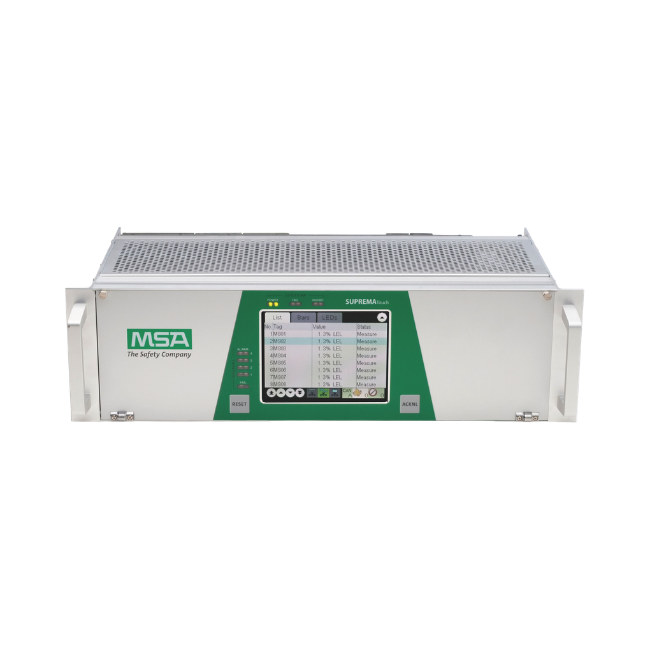

Fire and Gas Detection System for diverse range of industries and applications. The SUPREMATouch has been enhanced with several new features which makes it outstanding in its class. Added to the popular large colour touchscreen display, a new title-based menu structure has been added to optimize intuitive operation. The SUPREMATouch can be used with a wide range of detectors for combustible gas, toxic gas and oxygen. Output options include relays and 4-20mA outputs. Remote racks can be connected (satellite structure), which expands control systems and reduces cabling costs. Interfacing to external systems is provided by using Modbus or Profibus. The SUPREMATouch has been certified according to ATEX and is suitable for virtually any safety related application including redundant systems with up to a Safety Integrity Level (SIL) 3 rating (EN 61508). The intuitive SUPREMA Manager Software is intended for configuration, parameterization and calibration of the SUPREMATouch Fire and Gas Controller. It offers the option to create detailed and clearly laid out reports to support documentation and supports all the new features of the SUPREMATouch.
Note: This is a custom product. Please consult your local MSA distributor or contact MSA Customer Service for configuration details.
Approvals subject to change without notice and may differ based on configuration, part number and/or country.
Contact Customer Service or check approval label on product for specific approval information.
ATEX (EN 50104, EN 50271, EN 60079-29-1)
CSA / CSA us
SIL 3 (EN 50402, EN 61508)
GB16808-2008 Combustible Gas Alarm Control Units (China)
USA Approvals
CSAus – 120619_CSA_2454406_254406
Canadian Approvals
CSA – 120619_CSA_2454406_254406
European Union
CE Declaration of Conformity – Suprema_DC0747000_01
TUV – 968_EZ_163_24_16_en_el
EXAM – DMT03ATEXG003X
ATEX
International
China (CMC) – 120327_CMC_5000199-1
China (CCCF) – 111221_CCCF_073114858011ROM
Russia (Gost R) – 111228_GOST_05.B03806
Applications
General
Catalog Permanent Gas Detection
Flyer: Pre Configured SUPREMATouch Gas Controller
Brochure
Manual
Operating Manual
Operating Manual: SUPREMA Manager
Operating Manual: SUPREMA Calibration
Features and benefits
Compact modular design requires less space in cabinets
Digital CAN-bus technology provides reliable internal communication
Intuitive system configuration directly on the local language touch screen with no programming skills required
Continuous expandability lets the system grow with the needs, thus ensuring protection of investment
New enhanced features:
One new analogue input module MAI30 for all connectable detector types
Extension of switching logic
New hardware
Additional calibration options:
Remote calibration with HART option (no additional tools necessary)
One man calibration (gas values are transferred automatically)
Group calibration (optional amount of measuring points per group can be calibrated in parallel)
