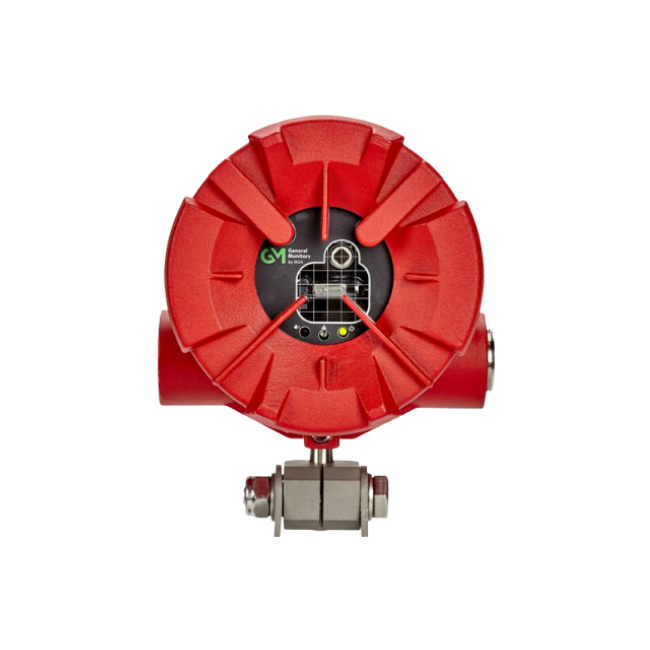

    FL500 UV/IR Flame Detector

    The FL500 UVIR Flame Detector delivers high speed flame detection with increased false alarm immunity in a compact design.

    The FL500 UV/IR Flame Detector monitors for radiation emitted by a flame in both the ultraviolet (UV) and infrared (IR) spectral ranges. This UV/IR combination provides a fast response time and increased false alarm immunity against sources of radiation for reliable protection.

    Out of stock

    Add to Enquiry List

    For bulk orders, please click here to get a quote for a discounted price, instead of adding to cart.

    Categories ,

    Additional information

    industry

    , , , ,

    application

    , ,

    hazard

    ,

    Highlights

    • Proven Technology. UV/IR flame detection uses an ultraviolet and an infrared detector to monitor for flames increasing false alarm immunity by measuring two different flame spectrums.
    • FM Performance Approved. Six fuel sources (heptane, methane, methanol, propane, ethane, butane) tested with verified field of view.
    • Wide Field of View. 130° cone of vision covers greater distance.
    • Safety Integrity Self-Check. Continuous Optical Path Monitoring (COPM) performs self-check every two minutes to ensure the optical path is clear and the electronic circuitry is functional.

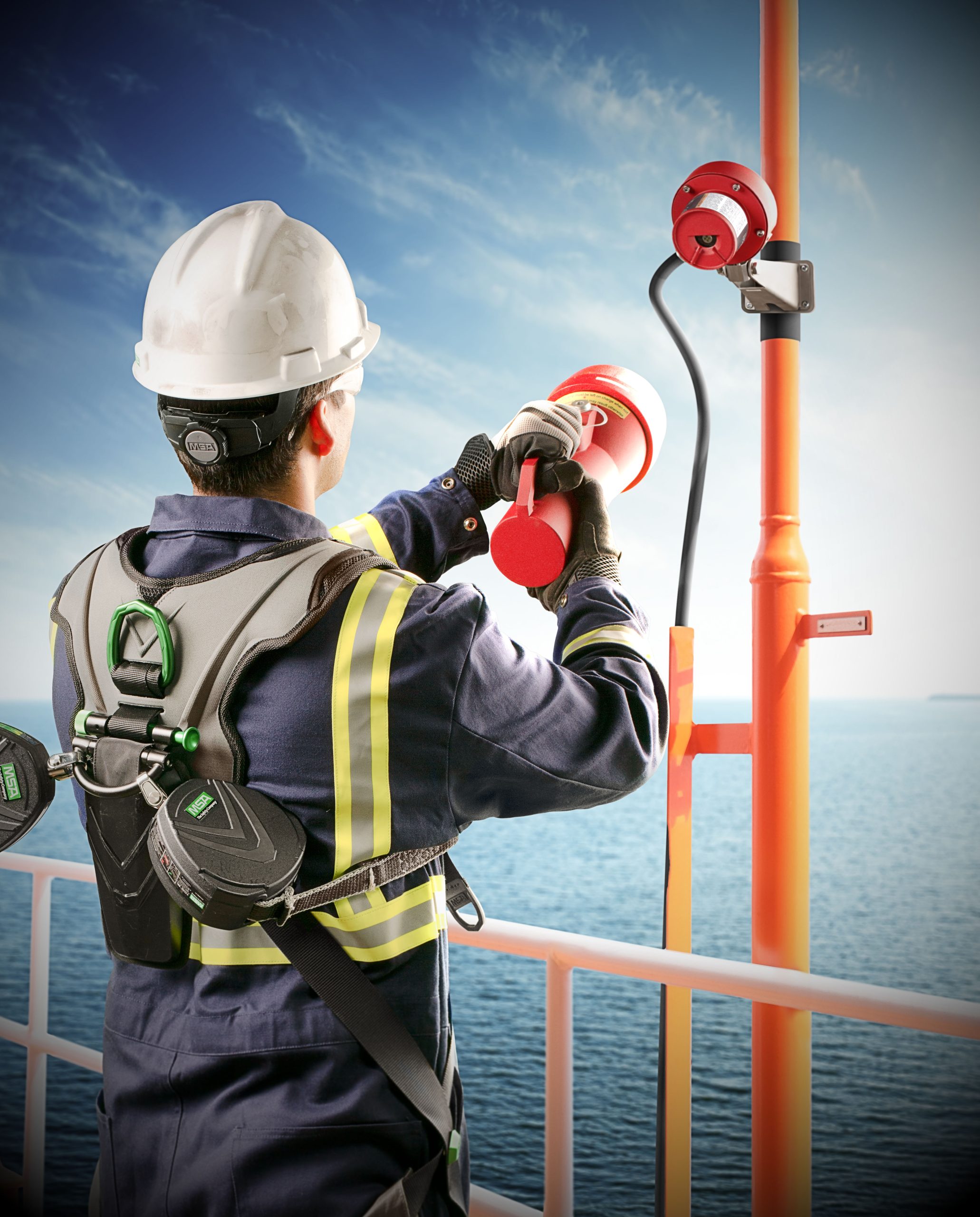

    • Test Anytime, Anywhere. Easily test with our exclusive TL105 Test Lamp that allows the FL500 UV/IR Flame Detector to be safely tested under real fire conditions with a simulated flicker of a flame.
    • Withstands Extremes. Wide operating temperature range (-55°C to +85°C) permits operation in extreme environments.
    • Status at a Glance. Three LED status indicators for warning, alarm, and normal operations.
    • Rugged Housing. 316 stainless steel housing to withstand the harshest environments
    • Multiple Output Options. Industry standard 4-20 mA (source or sink analog), Modbus, HART, relays

    Approvals

    Approvals subject to change without notice and may differ based on configuration, part number and/or country.
    Contact Customer Service or check approval label on product for specific approval information.
